WH-LTE-7S1-E

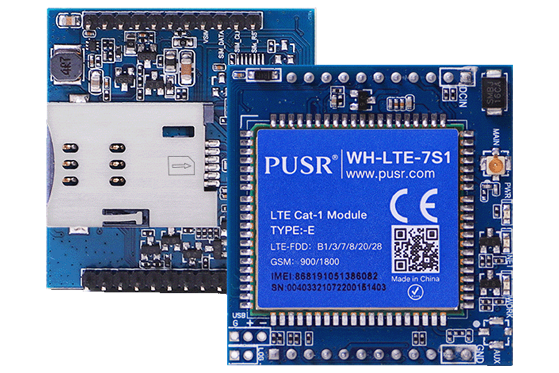

WH-LTE-7S1-E (DIP type LTE Cat 1 Module)
- Uart to 4G: AT commands and data transmission, TTL-3.0V
- TCP/UDP/HTTPD/SMS transparent transmission
- TCP /UDP/IPV4/IPV6/HTTP/MQTT/DNS/SSL/TLS
- Cloud support: MQTT via AWS IOT, Thingsboard, Alibaba Cloud, EMQX, Tuya, Cumulocity IoT, etc.
- EFT/Surge IEC 61000-4-5 Level 3
- ESD IEC 61000-4-2 Level 3
- Hardware watchdog
- SMS, NET, Serial AT command configuration
Application Case
Case of the Transmission of Sharing Payment Terminal via Internet
In this scenario, 7S1 can quickly upload terminal data and issue server commands, bringing good interaction experiences to consumers. The sharing payment solution using 7S1 provides the following advantages:
- Support LTE, enjoy stable networks, millisecond delay of data communication, and provide good payment experiences
- Support GPRS, and automatically switch over GPRS in the case of unstable LTE while meeting requirements and ensuring communication quality
- Support bi-directional transparent transmission of data at serial ports and networks, with ease of use, and release you from subsequent operations once configured.
Case of Agricultural IOT Environmental Monitoring
G7S1 can quickly upload the data collected by sensors in agricultural greenhouses to remote servers through the LTE or GPRS network to facilitate the control center to monitor the greenhouse dynamics in real time and provide timely responses.
Specification Parameters
| Model | WH-LTE-7S1-E | |
| LTE Category | LTE Cat.1 | |
| Frequency Bands | ||
| LTE FDD | B1/B3/B7/B8/B20/B28 | |
| GSM/GPRS/EDGE | 900/1800MHz | |
| Transmission Speed | ||
| LTE FDD Rel.13 | 10MbpsDL/5Mbps UL | |
| GPRS | 85.6KbpsDL/85.6Kbps UL | |
| TX Power | ||
| FDD:B1/3/7/8/20/28 | 23dBm±2dB | |
| GSM:900MHz | 33dBm±2dB | |
| GSM:1800MHz | 30dBm±2dB | |
| Rx Sensitivity | ||
| GSM:900MHz | -109.5dBm | |
| GSM:1800MHz | -108dBm | |
| FDD:B1/3/20 | -98dBm | |
| FDD:B7 | -97.5dBm | |
| FDD:B8/B28 | -98.5dBm | |
| Serial Parameters | ||
| NO. | TTL(3.0V)*1 | |
| Data Bits | 8 | |
| Stop Bits | 1,2 | |
| Parity Bits | NONE,ODD,EVEN | |
| Baud Rate | 1200～460800 | |
| Physical Interfaces | ||
| SIM/USIM card | 1.8V/3V(with slot) | |
| Antenna | IPEX socket | |
| USB | USB 2.0 | |
| Indicators | POWER,WORK,NET | |
| Reload | Pin, built-in Pull-up Res | |
| Reset | Pin, built-in Pull-up Res | |
| Hardware Characteristics | ||
| Input Voltage | 3.6V～4.2V/5～16V | |
| Power Consumption | ＜2.7W | |
| Connector | DIP | |
| Housing material | – | |
| Dimensions(mm) | 44.4×41.8×12.5 (L*W*H) | |
| Operating Temperature | -30℃～+75℃ | |
| Storage Temperature | -40℃～85℃ | |
| Operating humidity | 5%～95% | |
| Storage humidity | 5%～95% | |
| Software | ||
| Protocol | TCP/UDP/IPV4/IPV6/ /DNS/HTTP/MQTT/SSL/TLS | |
| RNDIS | Default Close | |
| Serial to network | 4 sockets, default A | |
| SMS | PDU/TEXT | |
| Configuration | Serial, Net, SMS AT commands | |
| Cache | 20 packets*4K Bytes | |
| Packaging Mechanism | ||
| Packaging time(ms) | 10~500, default 50 | |
| Packaging length(byte) | 5～65535, defalut 1024 | |
| Others | ||
| Tool | USR-Cat1 Configuration Utility | |
| Certifications | CE, RoHS |
